American
Carries a complete line of fiber optic telephone extenders ranging
from simple "quick talk" extenders to multi-line (24 channel) PBX line
extenders allowing you to use existing fiber optic cable to run your voice needs
over 2 fiber strands or install fiber optic cable one time and use fiber optics
for security proof voice, data, IP, video services on one media- fiber.
The TC1900/1 "Quick-Talk" RS232 or Fiber Phone Extender extends dial-up phone service to remote sites over Async RS-232 or Fiber. Compatible with most PBXs or Key Systems, it provides 2-wire FXS on the telephone side with ring down capability and FXO on the PBX side.Quick-Talk is typically used to extend dial-up phone service to remote sites over a fiber optic (TC1901) or RS-232 circuit (TC1900). Other examples include extending a secured phone link to a remote site via an existing RS-232 or Fiber connection or setting up "hot links" via existing RS-232 links on satellite, fiber optic or microwave networks. When both sides are set to FXS, a "Hot Link" can be established.The TC1900/1 supports toll quality voice, asynchronous baud rates from 19.2K and bandwidths from 300Hz to 3.4Khz. Sixteen diagnostic LEDs and a Dry Contact for External Alarm and Ringer Connection are standard.
Our
fiber optic modems are available from several different manufacturers including
TC Comm, Opterna, Omnitron, Allied Telesyn, Opticomm, and others. Our Fiber Optic
Transmission products are ideal for Data, Voice, Ethernet, T1/E1, T3/E3 &
Audio for campus & intra-building fiber optic networks.
Additional
Fiber Optic Extenders- Allows Voice-Data-IP-Video -extend Voice PBX Service Via
Fiber Optic Cable
Telephone, Analog Data Fiber Optic Multiplexer (hot-swappable 4-28 channels
Extend up to 28 telephone, data & analog channels to remote network sites with the TC8800 Fiber Optic Multiplexer.
TC8800S/R-Telephone, Analog & Data Multiplexer - TC8800S/R
Extend up to 28 telephone, data & analog channels to remote network sites with the TC8800 Fiber Optic Multiplexer.
TC8000- Analog , Intercom & Data Multiplexer - TC8000
The TC8000 is a specialized 4-28 channel 2/4-Wire Analog, Audio, Intercom & Data Fiber Optic Multiplexer with hot-swappable chassis & high temperature options.
TC8520-Telephone, Ethernet & Data Multiplexer - TC8520
The TC8520 Telephone, Ethernet & Data Fiber Multiplexer combines 2-wire Analog POTS or 2/4-wire 600 Ohm Analog, 10/100 Ethernet & Serial Data over fiber optics.
Call Us Today Tollfree At (866) 342-3721 or (866) 650-DATA
Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives
Quick Talk RS-232
TC-1900 Fiber Telephone Extender- Prices Start at $1095 each
Quick
Talk TC-1900 Fiber Optic Telephone Extender
Telephone
fiber modem, telephone fiber converter, telephone to fiber multiplexer, telephone
fiber mux, analog phone to fiber, POTS, 2-wire
"Quick-Talk"
RS-232 or Fiber Telephone Extenders
(Model TC1900/TC1901*) Prices Start at
$980.00 ea.
Extend Telephone Link via Fiber or
Async RS-232
Async Baud Rate From 19.2Kbps
16 LEDs/4 DIP Switches for
Diagnostics
PBX and Key System Compatible, FXO/FXS Selectable
Voice
Bandwidth from 300Hz to 3.4Khz for Toll Quality Sound
Built-In Dry Contact
Relay for External Alarm and Ringer Connection
12VDC, Optional 24VDC, or
115/230VAC with Power Adapter
Applications
The TC1900/1901 is often used to extend telephone service in campus networks,
power plants, substations, etc or use an existing service data channel to set
up a telephone link. It is also used to set up "Hot Links" telephone
service via existing RS-232 links on satellite, fiber optic or microwave networks.
Other applications include using the inherent benefits of fiber optics to reduce
noise/EMI or maximize security/isolation.
Applications
The TC1900/1901 is often used to extend telephone service in campus networks,
power plants, substations, etc or use an existing service data channel to set
up a telephone link. It is also used to set up "Hot Links" telephone
service via existing RS-232 links on satellite, fiber optic or microwave networks.
Other applications include using the inherent benefits of fiber optics to reduce
noise/EMI or maximize security/isolation.
Description
The
TC1900/1901 "Quick-Talk" Phone Extender can turn a fiber optic network
or RS-232 circuit into a voice network simply by plugging a telephone set into
an RJ-11 connector. It is compatible with most PBXs or Key Systems.
Quick-Talk
is typically used to extend dial-up phone service to remote sites over a fiber
optic (TC1901) or RS-232 circuit (TC1900). For example, a user can extend a secured
phone link to a remote site via an existing satellite or microwave RS-232 data
connection. With the optional fiber optic front end, Quick-Talk can extend a phone
line up to 20 miles away.
Quick-Talk
provides 2-wire FXS (foreign exchange subscriber) on the telephone side with ring
down capability and FXO (foreign exchange office) on the PBX side. When both sides
are set to FXS, a "Hot Link" can be established; when one side lifts
up the handset, the other side starts ringing.
Available
in standalone (TC1900S) or rackmount (TC1900R) versions, it is compatible with
all popular types and sizes of fiber optic cable. Diagnostic aids include 16 diagnostic
LEDs for indicating power, ring, FXS, FXO, and audio activity. The TC1900R PC
Card version fits into TCRM191 and TCRM195 rackmount card cages.
Quick-Talk
is available with RS-232 or optical interfaces. The optical interface is available
in multimode (850/1300nm) or single mode (1300/1550nm) versions, with ST, FC or
SC connectors. A local dry contact relay is also provided for external alarm and
ringer connection.
Power
is 12VDC or 115/230VAC with an external power cube. 24VDC is optional. Power redundancy
is standard. Electrical connectors are RJ-11 Female for both the telephone set
& RS-232 connections. *For ordering purposes, the TC1900 is the RS-232
version. TC1901 is the fiber version.
Order Today-Call (866) FIBER-21
TC1910
Fiber Optic Telephone Extender--Prices Start at $995.00
TC1910
Fiber Optic Telephone Extender
Extends
Telephone Link via 10 Base-T Ethernet Connection Connects to Full Duplex Devices:
Switches, Routers, Bridges, Transceivers, etc. Automatic Power-Up, Recovery
Connection Web-Based Configuration Interface PBX & Key System (POTS)
Compatible, FXO/FXS Voice Bandwidth from 300Hz to 3.4Khz for Toll Quality
Sound 18 LEDs for Diagnostics & Status Monitoring Built-in Dry Contact
Relay for External Alarm and Ringer Connection 12VDC, Optional 24VDC or 115/230VAC
with Power Adapter
Description
The
TC1910 Ethernet Telephone Extender enables telephone service over a LAN via 10Base-T
Ethernet connections. It has a built-in Codec that digitizes voice and converts
to packets for transmission between local and remote TC1910s with designated IP
addresses. It is compatible with PBX and Key Systems (POTS).
LAN
connections can be made by most types of Full Duplex Ethernet devices, including
switches, routers, bridges, transceivers, etc. A Web-based Configuration user
interface (most browsers including Microsoft Windows Explorer, etc.) is provided
to view network settings or change IP addresses from the factory default.
Phone
connection is automatic upon power-up or when network interruption is restored.
Depending on network traffic, multiple pairs of TC1910s can be used to set up
individual point-to-point telephone links. A hardened temperature version (-20°
to 70°C), Model TC1910T, is available for harsh environments.
The
TC1910 provides Toll Quality sound within voice bandwidths from 300Hz to 3.4KHz.

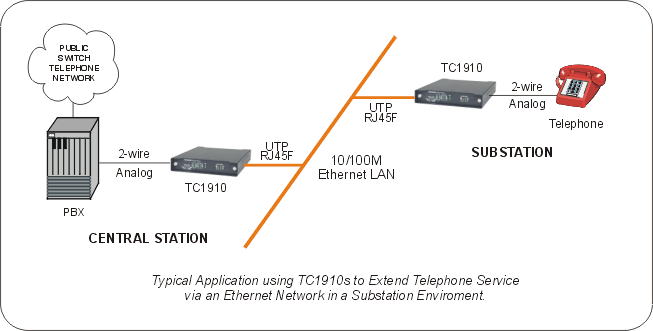

Two types of voice applications are supported: one, connecting to a PBX for outside

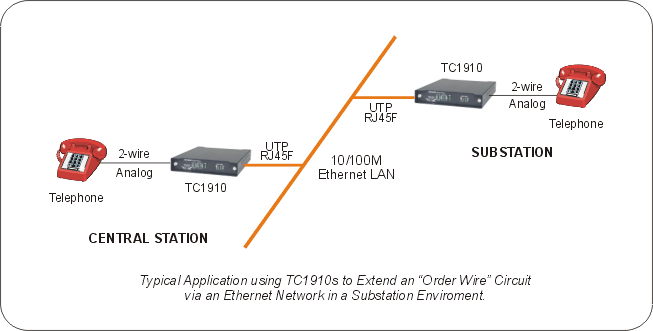

telephone service; two, setting up a "hot link" point-to-point connection,
e.g. between two work stations, within a LAN. Two-wire FXS (foreign exchange subscriber)
is provided on the telephone side with ring down capability and FXO (foreign exchange
office) on the PBX side.
Eighteen
LEDs for network status, phone status, power and volume are provided to enhance
status monitoring and diagnostics. Dry contacts for external alarm and ringer
are standard.
The TC1910 is available
in standalone (TC1910S) or rackmount (TC1910R) versions. The rackmount versions
fit into TCRM191 or TCRM195 19" Rackmount Card Cages. Power is 12VDC or 115/230VAC
with an external power cube. 24VDC power is optional. Power redundancy is standard.
Phone connectors are RJ-11 Female and 10Base-T connectors are RJ-45 Female
