    ICC Rack Mount Fiber Optic Enclosures- ICC Rack Mount Fiber Optic Patch Panels

    ICC Fiber Optic Enclosures-Fiber Optic Patch Panels- ICC Wall Mount Fiber Optic Patch Panels- ICC 24 Port Fiber Optic Patch Panels-ICC Indoor Fiber Optic Patch Panels - IC 48 Port Fiber Optic Patch Panels-ICC 144 Port Fiber Optic Patch Panels

    Live Support by Citricle

    ATEK Communications carries a complete line of ICC rack mount fiber optic patch panels ranging from ICC's 12 port fiber optic rack mount enclosures to ICC's rack mount fiber optic enclosures that hold up to 12 fiber optic adapter panels and support up to 192 ports. The new fiber optic enclosures have been designed with added features to improve security, durability, ease of use and to allow maximum performance.Additional options for internal cable routing help to simplify the overall installation. The new material used for the grommets have been carefully selected to prevent dust from entering the system and to avoid cable pinching, thus maximizing performance. For added security, the rear cover has been enhanced to limit rear access from anyone other than the installer/technician. Integral slide rails permit the enclosure to travel forward and backward within the rack, providing both front and rear access, thus making the installation process easier.

    For A Complete List Of Fiber Assemblies


    NEW 1-RMS Fiber OpticRack Mount Enclosure-ICFOR102xx* 2-Panel, 1 RMS

    Holds up to 2 fiber optic adapter panels and supports up to 32 ports. The new fiber optic enclosures have been designed with added features to improve security, durability, ease of use and to allow maximum performance. For added security, the rear cover has been enhanced to limit rear access from anyone other than the installer/technician. Integral slide rails permit the enclosure to travel forward and backward within the rack, providing both front and rear access, thus making the installation process easier. Additional options for internal cable routing help to simplify the overall installation. The new material used for the grommets have been carefully selected to prevent dust from entering the system and to avoid cable pinching, thus maximizing performance.

    SC FIBER OPTIC RACK ENCLOSURE

    SC FIBER OPTIC RACK ENCLOSURE

    ICFORSC024

    ST FIBER OPTIC RACK ENCLOSURE

    ST FIBER OPTIC RACK ENCLOSURE

    ICFORST024

    FIBER OPTIC RACK MOUNT ENCLOSURE 2-PANEL

    FIBER OPTIC RACK MOUNT ENCLOSURE 2-PANEL

    ICFOR102BK

    FIBER OPTIC RACK MOUNT ENCLOSURE 3-PANEL

    FIBER OPTIC RACK MOUNT ENCLOSURE 3-PANEL

    ICFOR103BK

    ECONOMY FIBER OPTIC WALL ENCLOSURE 2-PANEL

    ECONOMY FIBER OPTIC WALL ENCLOSURE 2-PANEL

    ICFOD102BK

    ECONOMY FIBER OPTIC WALL ENCLOSURE 4-PANEL

    ECONOMY FIBER OPTIC WALL ENCLOSURE 4-PANEL

    ICFOD104BK

    DELUXE FIBER OPTIC WALL ENCLOSURE 2-PANEL

    DELUXE FIBER OPTIC WALL ENCLOSURE 2-PANEL

    ICFOD202BK

    DELUXE FIBER OPTIC WALL ENCLOSURE 4-PANEL

    DELUXE FIBER OPTIC WALL ENCLOSURE 4-PANEL

    ICFOD204BK

    FIBER OPTIC RACK MOUNT 4-PANEL SPLICE ENCLOSURE

    FIBER OPTIC RACK MOUNT 4-PANEL SPLICE ENCLOSURE

    ICFOR444BK



    NEW 2-RMS ICC FiberRack Mount Enclosure- Part #ICFOR204xx* 4-Panel, 2 RMS

    Holds up to 4 adapter panels and supports up to 64 ports. The new fiber optic enclosures have been designed with added features to improve security, durability, ease of use and to allow maximum performance. For added security, the rear cover has been enhanced to limit rear access from anyone other than the installer/technician. Integral slide rails permit the enclosure to travel forward and backward within the rack, providing both front and rear access, thus making the installation process easier. Additional options for internal cable routing help to simplify the overall installation. The new material used for the grommets have been carefully selected to prevent dust from entering the system and to avoid cable pinching, thus maximizing performance.

    NEW 3-RMS Rack Mount Enclosure- Part #ICFOR306xx* 6-Panel, 3 RMS

    Holds up to 6 adapter panels and supports up to 96 prots. The new enclosures have been designed with added features to improve security, durability, ease of use and to allow maximum performance. For added security, the rear cover has been enhanced to limit rear access from anyone other than the installer/technician. Integral slide rails permit the enclosure to travel forward and backward within the rack, providing both front and rear access, thus making the installation process easier. Additional options for internal cable routing help to simplify the overall installation. The new material used for the grommets have been carefully selected to prevent dust from entering the system and to avoid cable pinching, thus maximizing performance.

    NEW 4-RMS Rack Mount Enclosure-Part#ICFOR412xx* 12-Panel, 4 RMS


    Holds up to 12 adapter panels and support up to 192 ports. The new enclosures have been designed with added features to improve security, durability, ease of use and to allow maximum performance. For added security, the rear cover has been enhanced to limit rear access from anyone other than the installer/technician. Integral slide rails permit the enclosure to travel forward and backward within the rack, providing both front and rear access, thus making the installation process easier. Additional options for internal cable routing help to simplify the overall installation. The new material used for the grommets have been carefully selected to prevent dust from entering the system and to avoid cable pinching, thus maximizing performance.

    West Coast (866) 342-3721 East Coast (866) 650-DATA

    Need Fiber Optic Adapters-Feed Through Adapters?

    SIGNAMAX Rack Mount Fiber Optic Enclosures

    Part Number

    Description

    Price

    UFE4-B

    4-Module (24 to 48 Fiber) Rack Mount Enclosure, Black

    Call

    UFE6-B

    6-Module (36 to 72 Fiber)Rack Mount Enclosure, Black

    Call

    UFE12-B

    12-Module (72 to 144 Fiber) Rack Mount Enclosure, Black

    Call

    FST-12A

    12-Fiber Aluminum Splice Tray for UFE Series Enclosures

    Call

    FST-24A

    24-Fiber Aluminum Splice Tray for UFE Series Enclosures

    Call
    Corning (compatible) Rack Mount Enclosures

    Fiber Optic Patch Panels-Rack Mount (RAC Series)

    Fiber-Conn's rackmount patch enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module preassemblies are available for easy fiber installation and management.

    Applications

    • Premise data network cabling and installations
    • Central office locations for Telco applications
    • Head-end location for CATV applications
    • Termination of interconnect cables at entry or intermediate cross connects
    • Termination of horizontal cables, cross connection or backbone cables to jumper cables
    • Splice capability with splice trays loaded.

      Features and Benefits

      • Fits 19-inch and 23-inch racks
      • 1U, 2U, and 4U available
      • Durable, clear front door for easy viewing of the interior; removable blackboard for easy access to terminated cables*
      • Removable top lid for easy access for 2U products
      • Front plexi-glass and rear steel doors with 1/4 turn latches to allow easy access from both sides
      • Strain-relief hardward and routing guides help maintain minimum bend radius
      • "D" shaped cutouts at front and rear for easy access of cable
      • Available fully populated with adapters, pigtails and slice trays or unloaded
      • Labeling kit, zip ties and installation screws included
      • Competitive pricing and prompt delivery

      *Note: Clear front door is not available







    ATD-RAC-1x Rac Mount Fiber Optic Enclosure

    36 Port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Patch Panel Part No. ATDRAC-1X- Price $97.00
    Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
    Weight (unloaded): 10.3 lbs.
    Port Capacity: 6-36
    Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
    Lead time: In Stock, Immediate Shipment

    ATD 19” Rack Mount Fiber Optic Enclosure

     Features and Benefits

    • Fits 19-inch and 23-inch racks
    • 1U, 2U, and 4U available
    • Durable, clear front door for easy viewing of the interior; removable blackboard for easy access to terminated cables*
    • Removable top lid for easy access for 2U products
    • Front plexi-glass and rear steel doors with 1/4 turn latches to allow easy access from both sides
    • Strain-relief hardward and routing guides help maintain minimum bend radius
    • "D" shaped cutouts at front and rear for easy access of cable
    • Available fully populated with adapters, pigtails and slice trays or unloaded
    • Labeling kit, zip ties and installation screws included
    • Competitive pricing and prompt delivery

    Part No. ATDRAC-12-OP ATD19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs ) Price $ 56.00

    Part No. ATDRAC-24-OP ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 75.00

    New is a ATD-RS24 and ATEK CommunicationsF1-RS72 rack mount splice and termination enclosure. Allows for patching on top and convenient organization of splice trays in the bottom shelf. Both 24 and 72 patch and splice versions are available. Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.

    Part No. ATDRS-24 ATEK Communications19" 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ) Price $ 189.00 each

    Part No. ATDRS ATEK Communications72 Port Rack Patch & Splice Enclosure ) Price $ 270.00 each

    The ATEK CommunicationsRack Mount Enclosure is designed for low or high density patching applications. This sturdy 16 gauge aluminum rack enclosure is available in 24, 48, 72, 96 and 144 port versions in standard beige. This unit provides a lift-off door with front and back access to the slideout tray. The ATD Rack Mount Enclosure features a smoked Lexan front door. Call ATD at 1-866-342-3721 to order in black 16 gauge steel.

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.ATD-F1RM144X - 144 Port Rack Mount Enclosure, unloaded, holds 24 six packs, 13 1/2"D x 17 1/8"W x 15"H, 19lbs.
    • ATD-F1RM24XA - 24 Port Rack Mount Enclosure, unloaded, holds 4 six packs, 13 1/4"D x 17 1/8"W x 3 1/2"H, 12lbs.
    • ATD-F1RM48X - 48 Port Rack Mount Enclosure, unloaded, holds 6 eight packs, 13 1/4"D x 17 1/8"W x 4 3/4"H, 14lbs.
    • ATD-F1RM72X - 72 Port Rack Mount Enclosure, unloaded, holds 12 six packs, 13 1/4"D x 17 1/8"W 7 1/8"H, 17lbs.

    Part No. ATD-F1RM144X- ATEK Communications144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs ) Price $ 245.00 each

    Part No. ATD-F1RM24XA -ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 99.00 each Part No. ATD-F1RM48X- ATEK Communications48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs ) Price $ 112.00 each

    Part No.ATD-F1RM72X ATDATD 72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price $170.00 each

    24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs )

    24 port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Optic Patch Panel Part No. ATDRAC-12X-Price $96.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-24
    Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    48 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATDRAC-24X- Price $100.50
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-48
    Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipmen
    t

    72 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATEK CommunicationsRAC-2X- Price $105.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-72
    Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    144 Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X Price- $173.25
    Dimensions: Width = 17'', Depth = 12'', Height = 7''
    Weight (unloaded): 11.5 lbs.
    Port Capacity: 6-144
    Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
    Lead time: In Stock, Immediate Shipment

    The two-rack space four & six module fiber optic enclosures provide additional capacity for higher fiber count requirements, enabling up to 48 fiber capacity in the four module enclosure, and up to 72 fibers in the six-module version. Both enclosures feature recessed front panel, facilitating coupling access, and two access doors in front and rear. The plexi-glass front panel enables visual inspection when closed. All Signamax connector interface modules are compatible with the two-rack space enclosure.

    The Signamax four-rack space, 12-module fiber optic enclosure contains all of the features of the two-rack space model, but with additional capacity to manage fiber counts up to 144. Cable entry/exit feature utilizes a flexible grommet seal, which is cut at time of installation to accommodate the desired cable diameters for entry and exit points. These grommets provide a dust & debris barrier during and after installation. All Signamax connector interface modules can be utilized in the four-rack space enclosure. Optional 12- and 24-fiber splice trays are available.

    Rack Mount Fiber Optic Enclosyures

    Part Number

    Description

    Price

    UFE4-B

    4-Module (24 to 48 Fiber) Rack Mount Enclosure, Black

    Call

    UFE6-B

    6-Module (36 to 72 Fiber)Rack Mount Enclosure, Black

    Call

    UFE12-B

    12-Module (72 to 144 Fiber) Rack Mount Enclosure, Black

    Call

    FST-12A

    12-Fiber Aluminum Splice Tray for UFE Series Enclosures

    Call

    FST-24A

    24-Fiber Aluminum Splice Tray for UFE Series Enclosures

    Call

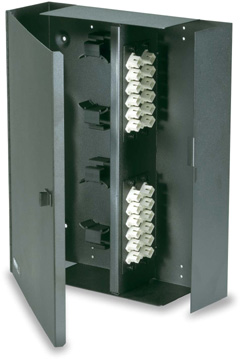

    Wall Mount Fiber Optic Enclosures

    Signamax wall-mount fiber optic enclosures manage, protect & organize fiber optic terminations for single and multi-mode fiber optic cables. Enclosures accept Signamax modules to accommodate a variety of connector interfaces The WFE-2 supports from 12 to 24 fiber counts while the WFE4 accommodates from 12 to 48 fibers. Enclosures and connector modules are ordered separately.

    WFE2-B

    WFE4-B

    Signamax Wall Mount Fiber Optic Enclosures

    Wall Mount Fiber Optic Enclosures

    Part Number

    Description

    Price

    WFE2-B

    2-Module (12 to 24 Fiber) Wall Mount Enclosure, Black

    Call

    WFE4-B

    4-Module (24 to 48 Fiber) Wall Mount Enclosure, Black

    Call

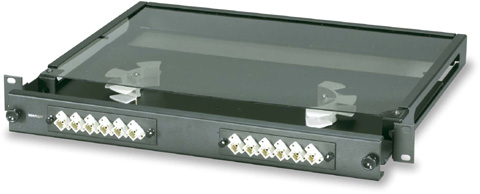

    Signamax slide-out rack-mount panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations in a one-rack space design. The rack-mount sliding tray panel accommodates up to 24 fibers in ST, SC, MTRJ and LC connector interfaces. The sliding-tray is equipped with slack-fiber storage spools, and comes complete with a number of cable management devices for organizing cables entering and exiting the panel. An optional splice tray is available.

    2-Module Low Profile Slide-Out Rack Mount Fiber Optic Enclosure

    Part Number

    Description

    Price

    SL2M-B

    2-Module (12 to 24 Fiber) Rack Mount Enclosure, Black

    Call

    FST-2M-B

    12 Fiber Splice Tray for SL2M-B

    Call

    Fiber Optic Patch Panels

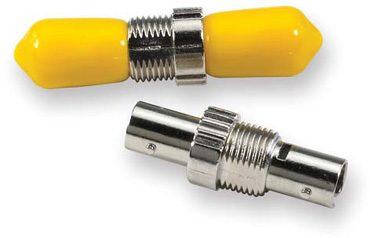

    ST Fiber Patch Panels

    Part Number

    Description

    Price

    12ST-FT

    12-Port (12-Fiber) ST SM/MM Fiber Patch Panel

    Call

    16ST-FT

    16-Port (16-Fiber) ST SM/MM Fiber Patch Panel

    Call

    24ST-FT

    24-Port (24-Fiber) ST SM/MM Fiber Patch Panel

    Call

    32ST-FT

    32-Port (32-Fiber) ST SM/MM Fiber Patch Panel

    Call

    48ST-FT

    48-Port (48-Fiber) ST SM/MM Fiber Patch Panel

    Call

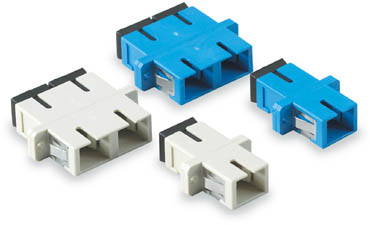

    SC Fiber Patch Panels

    Part Number

    Description

    Price

    12SC-FT

    12-Port (12-Fiber) SC SM/MM Fiber Patch Panel

    Call

    16SC-FT

    16-Port (16-Fiber) SC SM/MM Fiber Patch Panel

    Call

    24SC-FT

    24-Port (24-Fiber) SC SM/MM Fiber Patch Panel

    Call

    32SC-FT

    32-Port (32-Fiber) SC SM/MM Fiber Patch Panel

    Call

    48SC-FT

    48-Port (48-Fiber) SC SM/MM Fiber Patch Panel

    Call

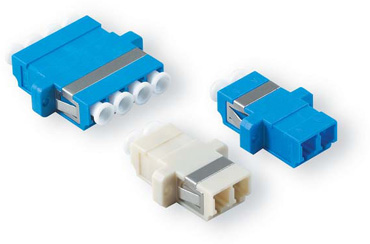

    LC Fiber Optic Patch Panels

    Part Number

    Description

    Price

    12LC-FT

    12-Port (12-Fiber) LC SM/MM Fiber Patch Panel

    Call

    16LC-FT

    16-Port (16-Fiber) LC SM/MM Fiber Patch Panel

    Call

    24LC-FT

    24-Port (24-Fiber) LC SM/MM Fiber Patch Panel

    Call

    32LC-FT

    32-Port (32-Fiber) LC SM/MM Fiber Patch Panel

    Call

    48LC-FT

    48-Port (48-Fiber) LC SM/MM Fiber Patch Panel

    Call

    MTRJ Fiber Patch Panels

    Part Number

    Description

    Price

    12MTRJ-FT

    12-Port (24-Fiber) MT-RJ SM/MM Fiber Patch Panel

    Call

    16MTRJ-FT

    16-Port (32-Fiber) MT-RJ SM/MM Fiber Patch Panel

    Call

    24MTRJ-FT

    24-Port (48-Fiber) MT-RJ SM/MM Fiber Patch Panel

    Call

    32MTRJ-FT

    32-Port (64-Fiber) MT-RJ SM/MM Fiber Patch Panel

    Call

    48MTRJ-FT

    48-Port (96-Fiber) MT-RJ SM/MM Fiber Patch Panel

    Call

    12-Port Fiber Optic Mini Wall Mount Panels

    Part Number

    Description

    Price

    12MST-FT

    12-Port (12-Fiber) ST MM/SM Fiber Panel w/89D Bracket

    Call

    12MSC-FT

    12-Port (12-Fiber) SC MM/SM Fiber Panel w/89D Bracket

    Call

    12MMTRJ-FT

    12-Port (24-Fiber) MT-RJ MM/SM Fiber Panel w/89D Bracket

    Call

    12MHST-FT

    12-Port (12-Fiber) ST MM/SM Fiber Hinged Panel

    Call

    12MHSC-FT

    12-Port (12-Fiber) SC MM/SM Fiber Hinged Panel

    Call

    12MHMTRJ-FT

    12-Port (24-Fiber) MT-RJ MM/SM Fiber Hinged Panel

    Call

    For a general review of fiber optic technology

    We Supply FTTH Projects-SBC-Verizon Fiber To The Curb/Home Fiber Optic-OSP-Fiber Test Equipment

    AFL-LL-400b Optical Splicing Enclosures

    Front & Rear Loading Fiber Optic Patch Panels
    Our new fiber optic enclosures by Contech and fiber patch panels are available in multiple configurations with high density port counts in a minimum of space, which provide an extremely organized above the floor infrastructure and manageable cable reconfiguration. ConTech features a 256 port high density panel with either LC, MT-RJ, or MU connector configurations in the same foot print for migration ease from one connector style to another. Also available are high density 12 to 48 port 1 rack unit panels with ribbon array connectivity MP or MTP connectors

    Front & Rear Mounted Fiber Optic Enclosures

    • Versatile cassettes
    • High density
    • Front access
    • Rear access
    • Under floor
    • Innovative wire management
    • Retro-fit of existing panels
    • LC, MT-RJ, MU, SC duplex
    • Custom silk screening
    • 19, 23, or 24 inch mounting

    Corning (compatible) Wall Mount Enclosures

    Corning (compatible) Wall Mount Fiber Optic Enclosures

    Fiber-Conn's wall-mount patch enclosures are designed for direct termination of up to 96 fibers. The WAC series accommodates up to 8 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The 16-gauge steel with corrosion-resistant black powder finish coat housing provides excellent protection for the inside fibers. Wall-mount available unloaded, as well as having the capability to become a full-splice enclosure with mechanical terminations. A large variety of connector adapters are offered to meet your specific requirements.

    Features and Benefits

    • Three sizes available with up to 8 adapter panel capacity
    • 16-gauge steel with corrosion-resistant black powder finish coat
    • Swing-down door with cable strand for more work space
    • Grommets at the top and bottom
    • Strain-relief hardware and routing guides help maintain minimum bend radius.
    • Available unloaded or fully loaded with capability of mechanical termination
    • Zip ties and installation screws included

    Part No. WAC-1X-Price $71.39 each
    Dimensions: Width = 6.5'', Depth = 1.5'', Height = 7''
    Weight (unloaded): 2.1 lbs.
    Features: Wall-mount enclosure accommodates 1 adapter panel (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with small pad lock. Entry point at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment. *The WAC-1X does not support splice trays.
    Lead time: In Stock, Immediate Shipment

    Part No. WAC-2X-Price $79.64 each
    Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
    Weight (unloaded): 6.85 lbs.
    Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Part No. WAC-4X- Price $85.14 each
    Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
    Weight (unloaded): 7.95 lbs.
    Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Part No. WAC-8X
    Dimensions: Width = 17'', 12.2''
    Weight: 12.7 lbs.
    Features: Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without allowing any unwanted handling of fiber optic cables. Side swing doors allow user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Part No. WAC-12X
    Dimensions: Width=17.75", Depth = 5.87'', Height = 16.75"
    Features: Wall-mount enclosure accepts 12 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall mount is lockable with a 1'' keyed barrel lock.
    Lead time: In Stock, Immediate Shipment

    Rack Mount Enclosures

    Fiber Optic Patch Panels-Rack Mount (RAC Series)

    Fiber-Conn's rackmount patch enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module preassemblies are available for easy fiber installation and management.

    Applications

    • Premise data network cabling and installations
    • Central office locations for Telco applications
    • Head-end location for CATV applications
    • Termination of interconnect cables at entry or intermediate cross connects
    • Termination of horizontal cables, cross connection or backbone cables to jumper cables
    • Splice capability with splice trays loaded.

      Features and Benefits

      • Fits 19-inch and 23-inch racks
      • 1U, 2U, and 4U available
      • Durable, clear front door for easy viewing of the interior; removable blackboard for easy access to terminated cables*
      • Removable top lid for easy access for 2U products
      • Front plexi-glass and rear steel doors with 1/4 turn latches to allow easy access from both sides
      • Strain-relief hardward and routing guides help maintain minimum bend radius
      • "D" shaped cutouts at front and rear for easy access of cable
      • Available fully populated with adapters, pigtails and slice trays or unloaded
      • Labeling kit, zip ties and installation screws included
      • Competitive pricing and prompt delivery

      *Note: Clear front door is not available





    ATD-RAC-1x Rac Mount Fiber Optic Enclosure

    36 Port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Patch Panel Part No. ATDRAC-1X- Price $97.00
    Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
    Weight (unloaded): 10.3 lbs.
    Port Capacity: 6-36
    Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
    Lead time: In Stock, Immediate Shipment

    ATD 19” Rack Mount Fiber Optic Enclosure

     Features and Benefits

    • Fits 19-inch and 23-inch racks
    • 1U, 2U, and 4U available
    • Durable, clear front door for easy viewing of the interior; removable blackboard for easy access to terminated cables*
    • Removable top lid for easy access for 2U products
    • Front plexi-glass and rear steel doors with 1/4 turn latches to allow easy access from both sides
    • Strain-relief hardward and routing guides help maintain minimum bend radius
    • "D" shaped cutouts at front and rear for easy access of cable
    • Available fully populated with adapters, pigtails and slice trays or unloaded
    • Labeling kit, zip ties and installation screws included
    • Competitive pricing and prompt delivery

    Part No. ATDRAC-12-OP ATD19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs ) Price $ 56.00

    Part No. ATDRAC-24-OP ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 75.00

    New is a ATD-RS24 and ATEK CommunicationsF1-RS72 rack mount splice and termination enclosure. Allows for patching on top and convenient organization of splice trays in the bottom shelf. Both 24 and 72 patch and splice versions are available. Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel. .

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.

    Part No. ATDRS-24 ATEK Communications19" 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ) Price $ 189.00 each

    Part No. ATDRS ATEK Communications72 Port Rack Patch & Splice Enclosure ) Price $ 270.00 each

    The ATEK CommunicationsRack Mount Enclosure is designed for low or high density patching applications. This sturdy 16 gauge aluminum rack enclosure is available in 24, 48, 72, 96 and 144 port versions in standard beige. This unit provides a lift-off door with front and back access to the slideout tray. The ATD Rack Mount Enclosure features a smoked Lexan front door. Call ATD at 1-866-342-3721 to order in black 16 gauge steel.

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.ATD-F1RM144X - 144 Port Rack Mount Enclosure, unloaded, holds 24 six packs, 13 1/2"D x 17 1/8"W x 15"H, 19lbs.
    • ATD-F1RM24XA - 24 Port Rack Mount Enclosure, unloaded, holds 4 six packs, 13 1/4"D x 17 1/8"W x 3 1/2"H, 12lbs.
    • ATD-F1RM48X - 48 Port Rack Mount Enclosure, unloaded, holds 6 eight packs, 13 1/4"D x 17 1/8"W x 4 3/4"H, 14lbs.
    • ATD-F1RM72X - 72 Port Rack Mount Enclosure, unloaded, holds 12 six packs, 13 1/4"D x 17 1/8"W 7 1/8"H, 17lbs.

    Part No. ATD-F1RM144X- ATEK Communications144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs ) Price $ 245.00 each

    Part No. ATD-F1RM24XA -ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 99.00 each Part No. ATD-F1RM48X- ATEK Communications48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs ) Price $ 112.00 each Part No.ATD-F1RM72X ATDATD 72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price $170.00 each ------------------------ FIS24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ---- --

    24 port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Optic Patch Panel Part No. ATDRAC-12X-Price $96.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-24
    Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    48 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATDRAC-24X- Price $100.50
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-48
    Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    72 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATEK CommunicationsRAC-2X- Price $105.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-72
    Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    144 Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X Price- $173.25
    Dimensions: Width = 17'', Depth = 12'', Height = 7''
    Weight (unloaded): 11.5 lbs.
    Port Capacity: 6-144
    Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
    Lead time: In Stock, Immediate Shipment

    AFL Fiber Closures









    ATEK Communications CARRIES A Complete Range Of Fiber Optical Enclosures-Fiber Distribution Enclosures-Optical Entrance Enclosures

    AFL-LL-400b Optical Splicing Enclosures

    Due to Rapidly fluctuating Wholesale Metal and Commodity Costs-The Following Fiber Optic Enclosure Prices Are Suggested List Prices Only! Please Call To Get Your Discount At (866) 342-3721

    ATEK CommunicationsPart Number Type Fiber Optic Enclosure Fiber Optic EnclosuresFiber Optic Patch Panels List
        Description Price
    ATDRAC-2X-EXT Rack Mount Fiber Optic Enclosure 2U, 6-Panel, EXTENDED TO 15" $204.85
    ATDRAC-36X Rack Mount Fiber Optic Enclosure 2U, 6-Panel, w/Sliding Tray $220.35
    ATDRAC-4X Rack Mount Fiber Optic Enclosure 4U, 12-Panel $251.72
    ATDRAC-4X-EXT Rack Mount Fiber Optic Enclosure 4U, 12-Panel, EXTENDED TO 15 " $298.19
    ATDRAC-8X-EXT Rack Mount Fiber Optic Enclosure 8U, 24-Panel, EXTENDED TO 15 " $576.39
    ATDDMAX-1X-EN Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 3 Panel, No Adapters $235.63
    ATDDMAX-1X-EN-X-LOUM-12 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 12-Port, Duplex, LC, Aqua $339.94
    ATDDMAX-1X-EN-X-LOUM-16 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 16-Port, Duplex, LC, Aqua $371.55
    ATDDMAX-1X-EN-X-LOUM-32 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 32-Port, Duplex, LC, Aqua $495.40
    ATDDMAX-2X-EN-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 3 Panel, No Adapters, w/Wire Management $322.99
    ATDDMAX-2X-EN-X-LOUM-12-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 12-Port, Duplex, LC, Aqua w/Wire Management $415.23
    ATDDMAX-2X-EN-X-LOUM-16-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 16-Port, Duplex, LC, Aqua w/Wire Management $446.84
    ATDDMAX-2X-EN-X-LOUM-32-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 32-Port, Duplex, LC, Aqua w/Wire Management $570.69
    ATDDMAX-4X-EN Rack Mount Fiber Optic Enclosure 4U, Black, 12 Panel, No Adapters $35.00
    ATDWAC-1X Wall Mount Fiber Optic Enclosure 1 Panel $71.39
    ATDWAC-2X Wall Mount Fiber Optic Enclosure 2 Panel $79.64
    ATDWAC-2X-EXT Wall Mount Fiber Optic Enclosure 2 Panel, Larger storage area $113.73
    ATDWAC-4X Wall Mount Fiber Optic Enclosure 4 Panel $85.14
    ATDWAC-8X Wall Mount Fiber Optic Enclosure 8 Panel $183.22
    ATD300-360-028 Wire Managament 1U, Black, 4-ring, Left and Right Pass Thru $87.27
    ATD300-360-029 Wire Managament 2U, Black, 4-ring, Left and Right Pass Thru $95.61
    ATD300-360-030 Wire Managament 2U, Black, 4-ring, Left and Right Pass Thru w/Rear Tray $101.36

    ATDEn Part No. DMAX-1X-EN-X-LOUM-16 - 16 Port LC Fiber Optic Rack Enclosure
    Features: 1U Data Center Enclosure, Sliding Rack Mount, Black, 16 Duplex LC Ports (32 Fiber Capacity)

    ATDEnPart No. DMAX-1X-EN-X-LOUM-16-C- 16 Port LC Fiber Optic Rack Enclosure
    Features: 1U Data Center Enclosure, Sliding Rack Mount, Black, 16 Duplex LC Ports (32 Fiber Capacity) with Wire Management

    ATDEnPart No. DMAX-1X-EN-X-LOUM-32 - 32 Port Fiber Optic Rack Enclosure
    Features: 1U Data Center Enclosure, Sliding Rack Mount, Black, 32 Duplex LC Ports (64 Fiber Capacity)

    ATDEnPart No. DMAX-1X-EN-X-LOUM-32-C- 32 Port LC Rack Mount Enclosure
    Features: 1U Data Center Enclosure, Sliding Rack Mount, Black, 32 Duplex LC Ports (64 Fiber Capacity) with Wire Management

    ATDEnPart No. DMAX-1X-EN
    Features: 1U Data Center Enclosure, Sliding Rack Mount, 1U Black, Supports 3 AP Series Standard Faceplates or Cassettes

    ATDEnPart No. DMAX-1X-EN-C- FiberOptic Enclosure
    Features: 1U Data Center Enclosure, Sliding Rack Mount, 1U Black, Supports 3 AP Series Standard Faceplates or Cassettes with Wire Management

    ATD-RAC-1x Rac Mount Fiber Optic Enclosure

    36 Port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Patch Panel Part No. ATDRAC-1X- Price $97.00
    Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
    Weight (unloaded): 10.3 lbs. Port Capacity: 6-36
    Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
    Lead time: In Stock, Immediate Shipment

    Part No. ATDRAC-12-OP ATD19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs ) Price $ 56.00

    Part No. ATDRAC-24-OP ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 75.00

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call ATEK Communicationsat (866) 342-3721 to order in black 16 gauge steel.
    • ATD-F1RM144X - 144 Port Rack Mount Enclosure, unloaded, holds 24 six packs, 13 1/2"D x 17 1/8"W x 15"H, 19lbs.
    • ATD-F1RM24XA - 24 Port Rack Mount Enclosure, unloaded, holds 4 six packs, 13 1/4"D x 17 1/8"W x 3 1/2"H, 12lbs.
    • ATD-F1RM48X - 48 Port Rack Mount Enclosure, unloaded, holds 6 eight packs, 13 1/4"D x 17 1/8"W x 4 3/4"H, 14lbs.
    • ATD-F1RM72X - 72 Port Rack Mount Enclosure, unloaded, holds 12 six packs, 13 1/4"D x 17 1/8"W 7 1/8"H, 17lbs.

    Part No. ATD-F1RM144X- ATEK Communications144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs ) Price $ 245.00 each

    Part No. ATD-F1RM24XA -ATEK Communications24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 99.00 each

    Part No. ATD-F1RM48X- ATEK Communications48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs ) Price $ 112.00 each

    Part No.ATD-F1RM72X ATDATD 72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price $170.00 each

    ------------------------ FIS 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ---- --

    24 port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Optic Patch Panel Part No. ATDRAC-12X-Price $96.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-24
    Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    48 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATDRAC-24X- Price $100.50
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-48
    Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipmen
    t

    72 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATEK CommunicationsRAC-2X- Price $105.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-72
    Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    144 Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X Price- $173.25
    Dimensions: Width = 17'', Depth = 12'', Height = 7''
    Weight (unloaded): 11.5 lbs.
    Port Capacity: 6-144
    Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
    Lead time: In Stock, Immediate Shipment



    Wall Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATEK CommunicationsWAC-1X
    Dimensions: Width = 6.5'', Depth = 1.5'', Height = 7''
    Weight (unloaded): 2.1 lbs.
    Features: Fiber Optic Wall Mount Enclosure- Pact Panel.Wall-mount enclosure accommodates 1 adapter panel (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with small pad lock. Entry point at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    ------------------------------------

    Wall Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-2X
    Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
    Weight (unloaded): 6.85 lbs.
    Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-4X
    Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
    Weight (unloaded): 7.95 lbs.
    Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-8X
    Dimensions: Width = 17'', Depth = 5.87'', Height = 12.2''
    Weight: 12.7 lbs.
    Features: Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without allowing any unwanted handling of fiber optic cables. Side swing doors allow user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    144 Port Fiber Optic Enclosure- Fiber Optic Patch Panel

    Part No. ATDWAC-12X-H-06-144- Same as ATDWAC-8X- but can accomodate 144 fibers. You can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination adapters you need. Ideal for tying in large count fiber cable from the "street" and using this panel as a distribution panel- leading into the building network.

    --------

    Wall Mount Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-2X
    Dimensions: Width = 13'', Depth = 3.6'', Height = 9.2''
    Weight (unloaded): 6.85 lbs.
    Features: Wall-mount enclosure accommodates 2 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-4X
    Dimensions: Width = 13'', Depth = 3.5'', Height = 11.5''
    Weight (unloaded): 7.95 lbs.
    Features: Wall-mount enclosure accommodates 4 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall-mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without unwanted handling of fiber optic cables. Side swing door allows user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    Fiber Optic Enclosure- Fiber Optic Patch Panel Part No. ATDWAC-8X
    Dimensions: Width = 17'', Depth = 5.87'', Height = 12.2''
    Weight: 12.7 lbs.
    Features: Wall-mount enclosure accepts 8 panels (6-, 8- or 12-fiber panels). 16-gauge steel with corrosion-resistant black powder finish coat. When closed, wall mount is lockable with a 1'' keyed barrel lock. Grommets at the top and bottom allow user to enter main enclosure without allowing any unwanted handling of fiber optic cables. Side swing doors allow user to run jumper cable assemblies to final destination. Spools and cable tie down bracket included on the inside compartment.
    Lead time: In Stock, Immediate Shipment

    144 Port Fiber Optic Enclosure- Fiber Optic Patch Panel

    Part No. ATDWAC-12X-H-06-144- Same as ATDWAC-8X- but can accomodate 144 fibers. You can now load up the 144 Count Fiber Patch Panel with SC-ST- or whatever combination adapters you need. Ideal for tying in large count fiber cable from the "street" and using this panel as a distribution panel- leading into the building network.

    ATEK Communications"Six" Packs



    Available are ATEK Communicationsadapter panels with pigtails for splicing.  This kit includes 1, 6, or 8 pack loaded adapter panel with pigtails.  Connector styles are indicated and standard length of pigtails are 3 meters.  Pigtails are TIA-568-A color coded.  Contact your ATEK Communicationssales associate at 1-866-342-3721 for custom adapter/pigtail kits.



    Singlemode Six Pack Kits - 3 meters

    • ATDP6SCSM - (1) SC SM 6 pack with 6 SC/UPC pigtails
    • ATDP6FCSM - (1) FC SM 6 pack with 6 FC/UPC pigtails
    • ATDP6STSM - (1) ST SM 6 pack with 6 ST/UPC pigtails
    • ATDP8SCSM - (1) SC SM 8 pack with 8 SC/UPC pigtails
    • ATDP6DSCSM - (1) Duplex SC SM 6 pack with 12 SC/UPC pigtails

    Multimode Six Pack Kits - 3 meters

    • ATDP6SCMM  - (1) SC MM 6 pack with 6 SC pigtails
    • ATDP8SCMM - (1) SC MM 8 pack with 8 eight SC pigtails
    • ATDP6STMM - (1) ST MM 6 pack with 6 ST pigtails

    ATDP6SCSM-1-SC Duplex Singlemode 6 Pack with 12-SC/UPC Pigtails Price$ 160.00

    ATDP6FCSM-1-FC Singlemode 6 Pack with 6-FC/UPC Pigtails Price $ 92.00

    ATD-P6STSM-1-SC Multimode 6 Pack with 6-SC/UPC Pigtails Price $ 50.00

    ATDP8SCSM-1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails Price $ 81.00

    ATDP6SCMM-1-ST Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00

    ATDP8SCMM-1-ST Singlemode 6 Pack with 6-ST/UPC Pigtails Price $ 82.00

    ATDP6STMM-1-SC Singlemode 8 Pack with 8-SC/UPC Pigtails Price $ 99.00



    ATEK CommunicationsSnap Six- Packs For Distribution Frames

    These pre-terminated adapter panels provide convenience to technicians splicing into fiber distribution frames.  Available in 6 or 12 fiber bundles with TIA-598-A standard color code, these bundled fibers provide cable management from patchpanel to splice bays. Standard 3 meters. Contact ATDat 1-866-342-3721 for custom lengths and different connector style adapter panels



    Singlemode Six Pack- Eight Pack Kits - 3 meters

    • ATDC6LSSP - (6) adapters, SC/UPC, 6 fiber pigtail, SM, 3 meters
    • ATDSC6LSSP - (6) duplex adapters, SC/UPC, 12 fiber pigtail, SM, 3 meters
    • ATDC6APCSP - (6) adapters, SC/APC, 6 fiber pigtail, SM, 3 meters
    • ATDC6DLSP - (6) duplex adapters, LC/UPC, 12 fiber pigtail, SM, 3 meters
    • ATDT6LSSP - (6) duplex adapters, ST, 12 fiber pigtail, SM, 3 meters
    • Multimode Six Pack- 8 Pack Kits - 3 meters
    • ATDC6LMSP - (6) duplex adapters, SC, 12 fiber pigtail, MM, 3 meters
    • ATDP6STMM - (1) ST MM 6 pack with 6 ST pigtails

    PRICING:

    ATDC6LSSP - 1 SC Duplex Singlemode 6 Pack with 12-SC/UPC Pigtails Price $ 190.70 each

    ATDSC6LSSP - 1-SC Singlemode 6 Pack with 6-SC/UPC Pigtails Price $ 76.90 each

    ATDC6APCSP - 1 SC Singlemode 6 Pack with SC/APC Pigtails Price $ 95.50 each

    ATDC6DLSP - 1-LC Duplex Singlemode 6 Pack with 12-LC/APC Pigtails Price $ 190.70 each

    ATDP6SCMM-1-ST Multimode 6 Pack with 6-ST/PC Pigtails $ 47.00

    ATDT6LSSP-1ST Multimode 6 Pack with 6 ST/PC Pigtails$ 86.00 each

    ATDT6LSMP -1 -ST Multimode 6 Pack with 6 ST/PC Pigtails Price $ 58.00 each

    Pricing For Six Pack-8 Pack Plates For Wall & Rack Mount Fiber Optic Enclosures



    ATD-Blank



    ATEK CommunicationsBlank Blank Plate with No Holes

    $ 4.75
    ATDSC6LM 6 Loaded-SC Duplex Multimode-Singlemode Adapters $ 48.80
    ATDFC6 6 Pack Plate (unloaded) $ 4.75
    ATDFC6APC 6 Pack Loaded with FC/APC Singlemode Adapters $ 49.20
    ATDF1FC6L 6 Pack Loaded w/FC-Multimode/Singlemode Adapters $ 37.90
    ATDF1LC6DL 6 Pack Loaded w/LC Duplex-Singlemode Adapters $ 52.20
    ATDF1LC6L 6 Pack Plate Loaded w/LC Duplex-Multimode Adapers $ 31.45
    ATDF1MTRJ6L 6 Pack Loaded w/MTRJ Multimode Adapters $ 21.70
    ATDF1SC6 6 Pack SC Plate ( Unloaded) $ 4.75
    ATDF1SC6APC 6 Pack Loaded w/SC/APC Singlemode Adapters $ 28.90
    ATDF1SC6L 6 Pack Loaded w/SC-Multimode/Singlemode Adapters $ 19.95
    ATDF1SC8 8 Pack SC Plate (Unloaded) $ 4.75
    ATDF1SC8LM 8 Pack Loaded with SC Multimode Adapters $ 24.90
    ATDF1SC8LS 8 Pack Loaded w/ SC -Singlemode Adapters $ 35.75
    ATDF1ST6 6 Pack ST Plate (Blank- Unloded) $ 4.75
    ATDF1ST6LM 6 Pack Plate Loaded w/ST -Multimode Adapters $ 21.10
    ATDF1ST6LS 6 Pack Loaded w/ ST Singlemode Adapters $ 29.97
    ATDF1ST8 8 Pack ST Plate (Unloaded) $ 4.75
    ATDF1ST8LM 8 Pack Loaded w/ ST- Multimode Adapters $ 23.75
    ATDF1ST8LS 8 Pack Loaded w/ ST-Singlemode Adapters $ 37.75



    Fiber Optic Enclosure Pricing

    ATEK CommunicationsPart Number Type Fiber Optic Enclosure Fiber Optic EnclosuresFiber Optic Patch Panels List
        Description Price
    ATDRAC-2X-EXT Rack Mount Fiber Optic Enclosure 2U, 6-Panel, EXTENDED TO 15" $204.85
    ATDRAC-36X Rack Mount Fiber Optic Enclosure 2U, 6-Panel, w/Sliding Tray $220.35
    ATDRAC-4X Rack Mount Fiber Optic Enclosure 4U, 12-Panel $251.72
    ATDRAC-4X-EXT Rack Mount Fiber Optic Enclosure 4U, 12-Panel, EXTENDED TO 15 " $298.19
    ATDRAC-8X-EXT Rack Mount Fiber Optic Enclosure 8U, 24-Panel, EXTENDED TO 15 " $576.39
    ATDDMAX-1X-EN Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 3 Panel, No Adapters $235.63
    ATDDMAX-1X-EN-X-LOUM-12 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 12-Port, Duplex, LC, Aqua $339.94
    ATDDMAX-1X-EN-X-LOUM-16 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 16-Port, Duplex, LC, Aqua $371.55
    ATDDMAX-1X-EN-X-LOUM-32 Sliding Rack Mount Fiber Optic Enclosure 1U, Black, 32-Port, Duplex, LC, Aqua $495.40
    ATDDMAX-2X-EN-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 3 Panel, No Adapters, w/Wire Management $322.99
    ATDDMAX-2X-EN-X-LOUM-12-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 12-Port, Duplex, LC, Aqua w/Wire Management $415.23
    ATDDMAX-2X-EN-X-LOUM-16-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 16-Port, Duplex, LC, Aqua w/Wire Management $446.84
    ATDDMAX-2X-EN-X-LOUM-32-C Sliding Rack Mount Fiber Optic Enclosure 2U, Black, 32-Port, Duplex, LC, Aqua w/Wire Management $570.69
    ATDDMAX-4X-EN Rack Mount Fiber Optic Enclosure 4U, Black, 12 Panel, No Adapters $35.00
    ATDWAC-1X Wall Mount Fiber Optic Enclosure 1 Panel $51.39
    ATDWAC-2X Wall Mount Fiber Optic Enclosure 2 Panel $59.64
    ATDWAC-2X-EXT Wall Mount Fiber Optic Enclosure 2 Panel, Larger storage area $113.73
    ATDWAC-4X Wall Mount Fiber Optic Enclosure 4 Panel $85.14
    ATDWAC-8X Wall Mount Fiber Optic Enclosure 8 Panel $183.22
    ATD300-360-028 Wire Managament 1U, Black, 4-ring, Left and Right Pass Thru $87.27
    ATD300-360-029 Wire Managament 2U, Black, 4-ring, Left and Right Pass Thru $95.61
    ATD300-360-030 Wire Managament 2U, Black, 4-ring, Left and Right Pass Thru w/Rear Tray $101.36

    Alcoa Fiber Closures

    Splice Closures are designed to simplify splice management. Quality engineering reduces the installation time, training and complexity associated with fiber splicing in the field. The closures can be installed without the need for special tools, heat, adhesives, drills, or any powered equipment. Durable and easy to install, these closures will improve productivity, reduce labor expenses and last the life of the plant. Closures are designed and tested to Telcordia™ GR-771 requirements and Rural Utilities Service (RUS) listed.he AFL family of Aerial Weathertight Splice Closures is designed to provide a cost-effective solution for your aerial splicing needs. Quality engineering reduces the installation time, training and complexity associated with fiber splicing in the field. The closures can be installed without the need for special tools, heat, adhesives, drills, or any powered equipment. Durable and easy to install, these closures will improve productivity, reduce labor expenses and last the life of the plant.

    * LG-410
    * LG-420
    * LG-500
    * LG-600

    Features:

    * Individual, patented, self-sizing cable grommets and strength member tie downs provide for cable additions without disturbing those previously installed
    * Unique tongue-in-groove closure seal and back-to-back grommet design provides for a weathertight and insect seal
    * Easy to maintain, all aerial closures are re-enterable without the need for any re-entry kits, special tools or sealants
    * Designed and tested to Telcordia™ GR-771 aerial weathertight closure requirements
    * Rural Utilities Service (RUS) listed

    NEMA RATED Outdoor FIBER OPTIC ENCLOSURES We can supply you with a full line of standard and


    Fiber Optic EnclosuresFiber Optic Patch Panels

    ATDRAC-1X Rack Mount 1U Patch Panel up to 36 Ports $87.00
    ATDRAC-12X Rack Mount 2U Patch Panel up to 24 Ports $96.00
    ATDRAC-24X Rack Mount 2U Patch Panel up to 48 Ports $100.50
    ATDRAC-2X Rack Mount 2U Patch Panel up to 72 Ports $105.00
    ATDRAC-4X Rack Mount 2U Patch Panel up to 144 Ports $173.25
    ATDWAC-2X Wall Mount patch panel up to 24 ports $37.49
    ATDWAC-4X Wall Mount patch panel up to 48 ports $56.25
    ATDWAC-8X Wall Mount patch panel up to 96 ports $122.63
    ATDAP-106ST 6 Pack ST PB Insert MM/SM Adapter Panel $10.43
    ATDAP-108ST 8 Pack ST PB Insert MM/SM Adapter Panel $14.93
    ATDAP-112ST 12 Pack ST PB Insert MM/SM Adapter Panel $24.00
    ATDAP-106SC 6 Pack SC PB Insert MM/SM Adapter Panel $13.43
    ATDAP-108SC 8 Pack SC PB Insert MM/SM Adapter Panel $24.00
    ATDAP-104DSC 4 Pack Duplex SC PB Insert MM/SM Adapter Panel $24.00
    ATDAP-106DSC 6 Pack Duplex SC PB Insert MM/SM Adapter Panel $30.00
    ATDAP-106MTRJ 6 Pack MTRJ (12 fibers) Mating Sleeve MM/SM Adapter Panel $24.00
    ATDAP-112MTRJ 12 Pack MTRJ (24 fibers) Mating Sleeve MM/SM Adapter Panel $45.00
    ATDAP-106LC 6 Pack LC PB Insert adapter panel $36.00
    ATDAP-106FC 6 Pack FC PB Insert adapter panel $24.00
    ATDAP-108FC 8 Pack FC PB Insert adapter panel $33.00
    ATDAP-112FC 12 Pack FC PB Insert adapter panel $39.00
    ATDRAC-1X Wall Mount patch panel up to 24 ports $42.90

    "Don't Gamble With Quality- Buy American"

    Ask About Our LOW PRICE MEET OR BEAT GUARANTEE!

    Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives



    Home | Cables | Switches | Contact Us | Our Team | Locations
